05-0456B

05-0456B Yamaha R6 Rearset - STD Shift

  • Sale
  • Regular price $499.99


The foot controls are one of the most vital connections you have with your motorcycle. As a result Woodcraft designs and builds the best Rearsets available to ensure your motorcycle reacts the way you intend it to.

Fitment: This kit was designed for the 2017 and up R6- but WILL ALSO FIT 2006-16 MODELS!

  • CNC machined from 6061-T6 billet aluminum and offer more than twice the durability of OEM rearset brackets.
  • 3-piece Pedals giving you an even stronger assembly and continuing our tradition of easy part replacement.
  • Our trick knurled footpegs give supreme feedback and the best traction available today.
  • Woodcraft rearset kits offer eccentric foot and toe pegs for adjustability (where applicable).
  • Virtually any part in our rearset kit can be purchased separately from our kits under the Spare Parts tab

Kit Specific Details

Shift Pattern: This complete rearset kit can be used in STD shift only.

Peg Movement: This kit has eccentric pegs that have 6 positions of adjustment ranging from 3/8" to 7/8" up and back when compared to OEM.

Quickshifters: Optional shift rods are available for common quick shifters.  A typical Dynojet style quickshifter uses a 07-2800 shift rod.  This rearset kit requires a pull type quick shifter

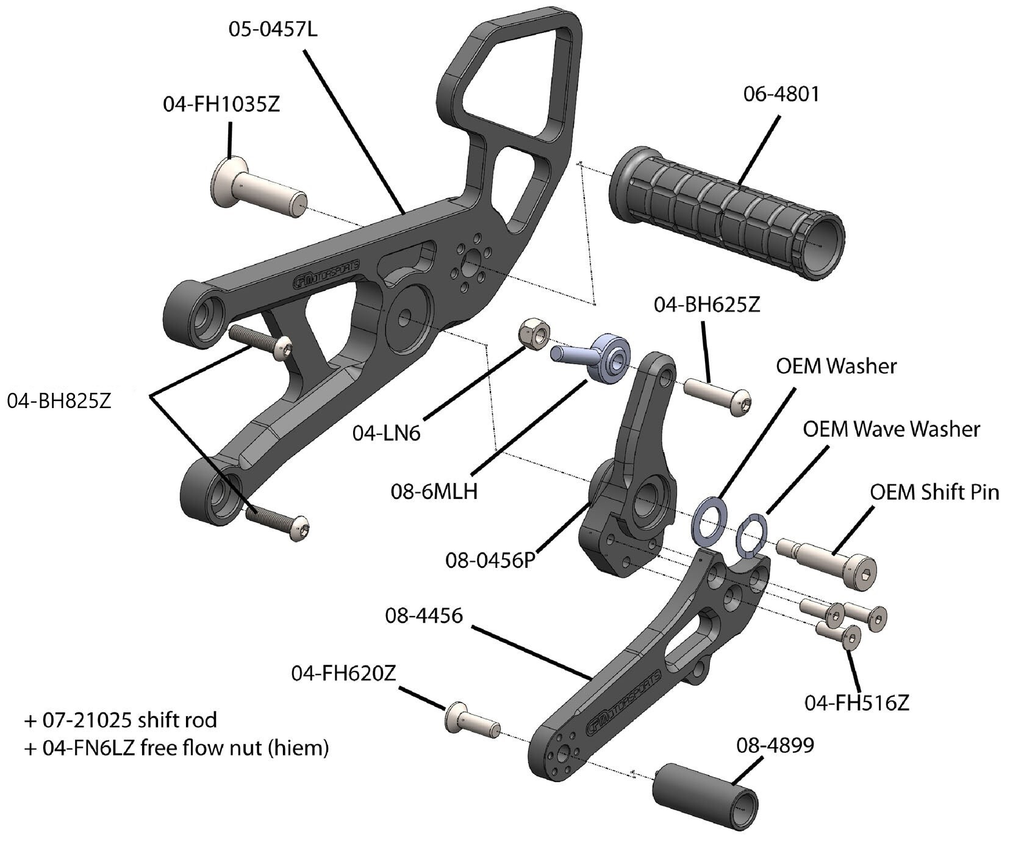

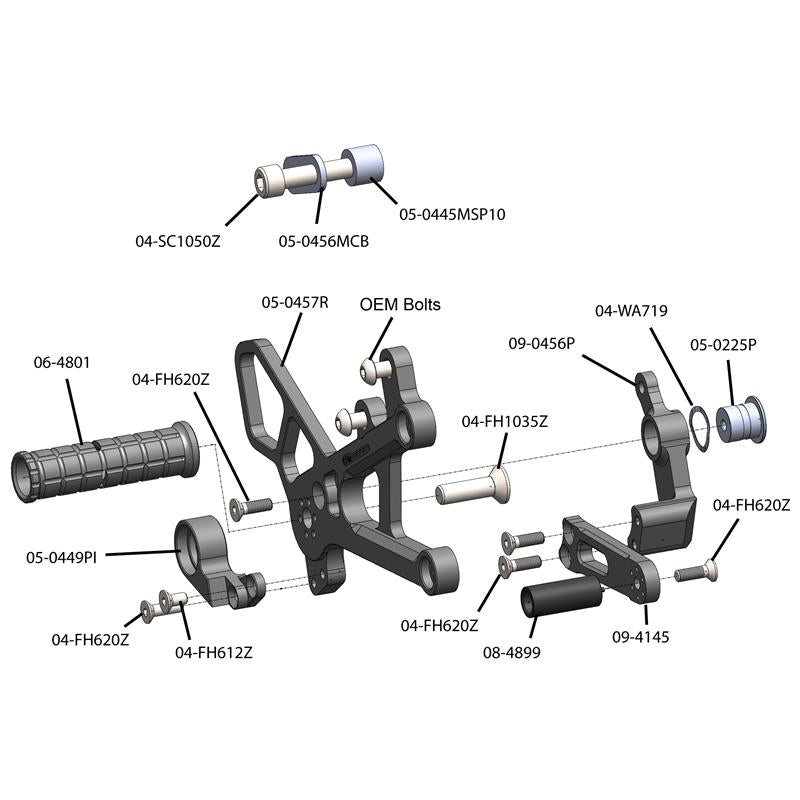

OEM Parts: Woodcraft rearsets assume you are replacing OEM rearsets.  This kit utilizes some OEM components - see exploded drawings for details.

Note: If your bike has the OEM Yamaha quickshifter- please call us.  We will modify the kit for you before shipping.

Note: If you are installing this kit on a 2006-16 R6 you will need to 1) Remove the gear change actuator (the part connected to the motor) and flip it so that the bend in the arm is oriented to the outside of the motorcycle. Remove the OEM hiem joint and attach the Woodcraft hiem (7) so that it sits on the outside of the actuator. The actuator must be rotated so that it is 90 degrees to the shift rod.  IMPORTANT - Secure the bolt with BLUE LOCTITE.
