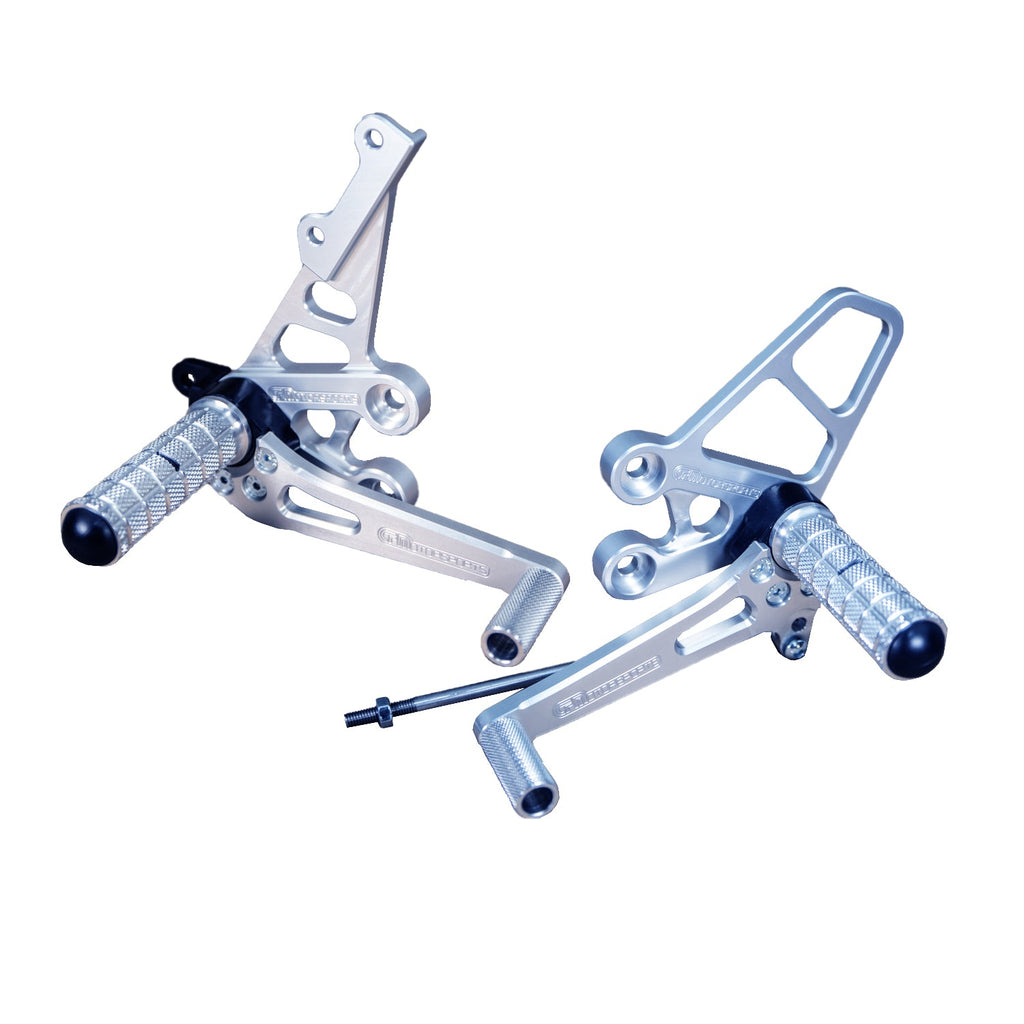

The foot controls are one of the most vital connections you have with your motorcycle. As a result Woodcraft designs and builds the best Rearsets available to ensure your motorcycle reacts the way you intend it to.
- CNC machined from 6061-T6 billet aluminum and offer more than twice the durability of OEM rearset brackets.
- 3-piece Pedals giving you an even stronger assembly and continuing our tradition of easy part replacement.
- Our trick knurled footpegs give supreme feedback and the best traction available today.
- Woodcraft rearset kits offer eccentric foot and toe pegs for adjustability (where applicable).
- Virtually any part in our rearset kit can be purchased separately from our kits under the Spare Parts tab
Moves pegs up 0.5" Back 0.5" NOTE: This complete rearset can be used in either Standard or GP shift.
Spare Parts
NO FOLDING TOE PIECES
05-0245 |
05-0245 Suzuki GSXR1000 2005-06 Rearsets
04-BH1030Z - QTY: 2 |
Button Head Socket Cap M10-1.5x30 coarse thread- zinc |
04-FN6LZ |
04-FN6LZ Nut Free-Flow 6mm LHS Zinc (shift rods) 04-FN6LZ |
04-FN6RZ |
04-FN6RZ Nut Free-Flow 6mm RHS Zinc (shift rods) 04-FN6RZ |
05-0245L |
05-0245L Suzuki GSXR1000 2005-06 Left Bracket |
05-0245R |
05-0245R Suzuki GSXR1000 2005-06 Right Bracket |
06-01PE - QTY: 2 |
06-01PE Optional Plug End Footpeg |
06-0245 - QTY: 2 |
06-0245 Replacement Footpeg with Bolt |
07-0625 |
07-0625 Male Stainless Steel Shift Rod- 6.25" Long |
|
08-0245 |
08-0245 Shift Pedal Assembly- Suzuki GSXR 1000 2005-06
04-BH625Z |
BHSC M6.-1.0 X 25Z (Shift Pedals) |
04-FH516FZ - QTY: 3 |
Flat Head M5-.8x16 Zinc (3-hole pedal screw) |
04-FH620Z |
Flat Head M6x20 Zinc Screw |
04-LN6Z |
Locknut M6-1.0 Nylon Insert- Zinc(shift and brake pedals) |
04-SP18 |
04-SP18 1/2x1/8 Round Spacer1 |
08-0099 |
08-0099 Toe Peg Silver with Bolt |
08-0245P |
08-0245P Shift Pedal Pivot- Suzuki GSXR 1000 2005-08 |
08-2099 |
08-2099 Shift Shaft- Offset Bend 3 Hole- Kawasaki Ninja650 2... |
08-6FLH |
08-6FLH Rod end- 6mm FLH (K125-K128-08-0200-245-249-449-700) |
|
09-0245 |
09-0245 Brake Pedal Assembly- Suzuki GSXR1000 2005-06
04-FH516FZ - QTY: 3 |
Flat Head M5-.8x16 Zinc (3-hole pedal screw) |
04-FH620Z |
Flat Head M6x20 Zinc Screw |
08-0099 |
08-0099 Toe Peg Silver with Bolt |
09-0245P |
09-0245P Brake Pedal Pivot- Suz 600/750 2006-20- GSXR 1000 2... |
09-1099 |
09-1099 Brake Pedal Shaft w/bolts- Aprila RS250 1996-04 |
|
WITH FOLDING TOE PIECES
05-0245 |
05-0245 Suzuki GSXR1000 2005-06 Rearsets
04-BH1030Z - QTY: 2 |
Button Head Socket Cap M10-1.5x30 coarse thread- zinc |
04-FN6LZ |
04-FN6LZ Nut Free-Flow 6mm LHS Zinc (shift rods) 04-FN6LZ |
04-FN6RZ |
04-FN6RZ Nut Free-Flow 6mm RHS Zinc (shift rods) 04-FN6RZ |
05-0245L |
05-0245L Suzuki GSXR1000 2005-06 Left Bracket |
05-0245R |
05-0245R Suzuki GSXR1000 2005-06 Right Bracket |
06-01PE - QTY: 2 |
06-01PE Optional Plug End Footpeg |
06-0245 - QTY: 2 |
06-0245 Replacement Footpeg with Bolt |
07-0625 |
07-0625 Male Stainless Steel Shift Rod- 6.25" Long |
|
08-0245 |
08-0245 Shift Pedal Assembly- Suzuki GSXR 1000 2005-06
04-BH625Z |
BHSC M6.-1.0 X 25Z (Shift Pedals) |
04-FH516FZ - QTY: 3 |
Flat Head M5-.8x16 Zinc (3-hole pedal screw) |
04-FH620Z |
Flat Head M6x20 Zinc Screw |
04-LN6Z |
Locknut M6-1.0 Nylon Insert- Zinc(shift and brake pedals) |
04-SP18 |
04-SP18 1/2x1/8 Round Spacer1 |
08-0099 |
08-0099 Toe Peg Silver with Bolt |
08-0245P |
08-0245P Shift Pedal Pivot- Suzuki GSXR 1000 2005-08 |
08-2099 |
08-2099 Shift Shaft- Offset Bend 3 Hole- Kawasaki Ninja650 2... |
08-6FLH |
08-6FLH Rod end- 6mm FLH (K125-K128-08-0200-245-249-449-700) |
|
08-7099A - QTY: 2 |
08-7099A Folding Toe Piece (Silver)
|
09-0245 |
09-0245 Brake Pedal Assembly- Suzuki GSXR1000 2005-06
04-FH516FZ - QTY: 3 |
Flat Head M5-.8x16 Zinc (3-hole pedal screw) |
04-FH620Z |
Flat Head M6x20 Zinc Screw |
08-0099 |
08-0099 Toe Peg Silver with Bolt |
09-0245P |
09-0245P Brake Pedal Pivot- Suz 600/750 2006-20- GSXR 1000 2... |
09-1099 |
09-1099 Brake Pedal Shaft w/bolts- Aprila RS250 1996-04 |
|
